Submitting Kicad PCB designs to be manufactured by Lintek
Here is Lintek's website:
www.lintek.com.au
Lintek requested that my files should contain the finished hole sizes,
rather than the drill sizes. They can do the calculations to determine
the actual drill sizes. (Their process puts a more uniform, thicker
layer of copper into the holes, so the amount of enlargement required
may differ from other PCB manufacturers.) They stock metric drills in
increments of 50 microns.
I did not rename any of the gerber files, they were happy with the
names that Kicad produced.
I ordered a panel, which gives 17x23 inches of usable space, with 0.1"
minimum between boards, They also have a Mini-prototype service for
smaller quantities. The PCBs turned out very well.

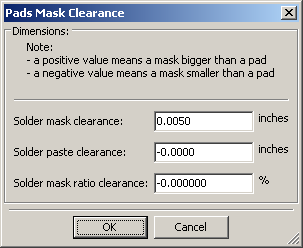

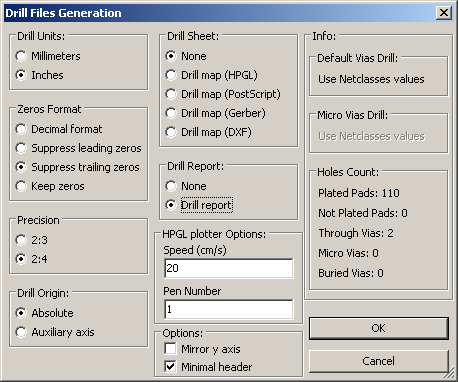

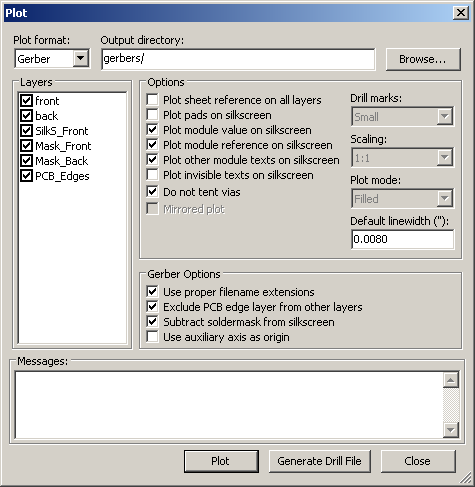

The Kicad settings I used are as shown below:
